Filter DAMPS_279_24
< DAMPS_279_20 | Filter Index | DAMPS_418_12 >

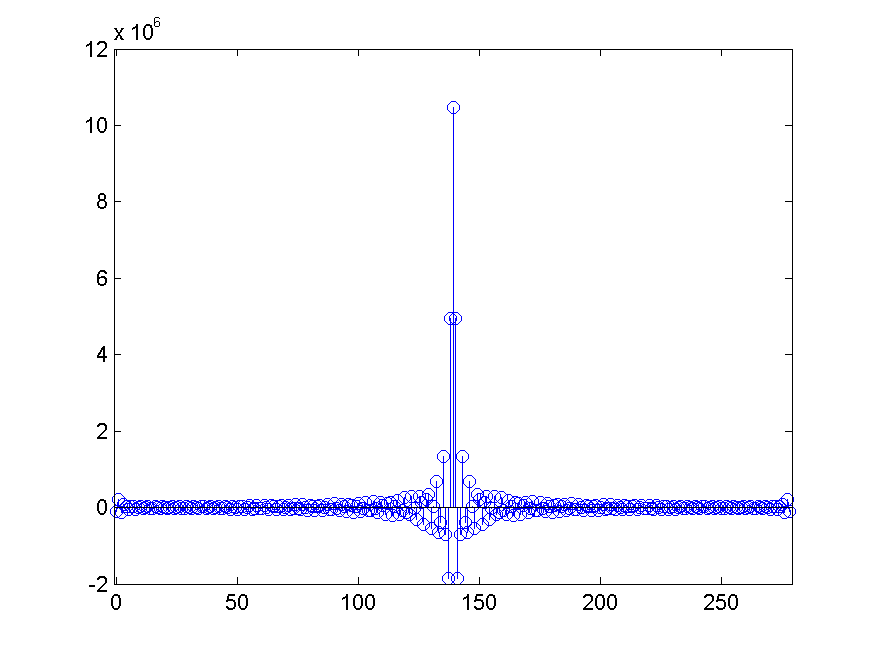

Impulse Response

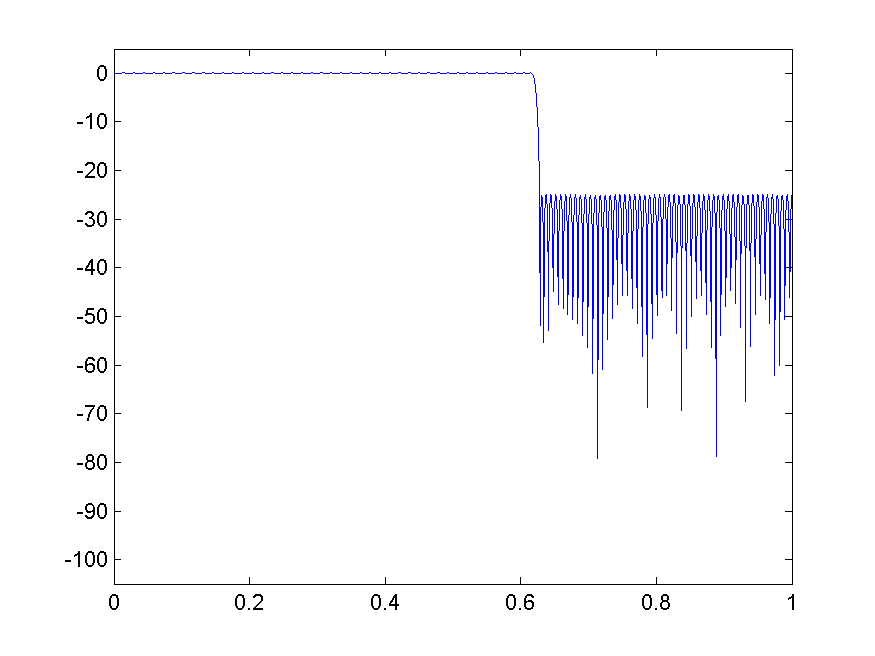

Transfer Function
The filter data was provided by Author Chang Chip-Hong. It was used in [1].
Filter Coefficients
| -106696 213723 -133754 93456 32539 -55028 32705 28867 -38987 7316 31400 -26559 -8867 31641 -13601 -20339 28037 -304 -27403 20421 12411 -29697 9522 22950 -26810 -3258 29811 -19177 -16043 31813 -7588 -26953 28289 6203 -33827 19400 20132 -35403 6271 31722 -30708 -9267 38886 -20235 -24719 39825 -4953 -37416 33909 12702 -44847 21242 30152 -45208 3543 44125 -37503 -16963 51987 -22496 -36581 51367 -1458 -52266 41868 21980 -60345 23606 44451 -58676 -1185 62104 -46773 -28409 70549 -24792 -54303 67610 4446 -73939 52338 36807 -83088 25735 66983 -78644 -9241 89475 -59532 -47669 99207 -26774 -83448 92709 15909 -109851 68377 62804 -120871 27525 106456 -111849 -25843 138812 -80685 -84878 152162 -28201 -140722 140276 41246 -183255 99334 120090 -202178 28790 197798 -187932 -68409 261655 -132512 -185779 297144 -29243 -313994 287737 128777 -441832 211801 354887 -557222 29431 691853 -649107 -380909 1334004 -708183 -1866799 4944867 10456287 4944867 -1866799 -708183 1334004 -380909 -649107 691853 29431 -557222 354887 211801 -441832 128777 287737 -313994 -29243 297144 -185779 -132512 261655 -68409 -187932 197798 28790 -202178 120090 99334 -183255 41246 140276 -140722 -28201 152162 -84878 -80685 138812 -25843 -111849 106456 27525 -120871 62804 68377 -109851 15909 92709 -83448 -26774 99207 -47669 -59532 89475 -9241 -78644 66983 25735 -83088 36807 52338 -73939 4446 67610 -54303 -24792 70549 -28409 -46773 62104 -1185 -58676 44451 23606 -60345 21980 41868 -52266 -1458 51367 -36581 -22496 51987 -16963 -37503 44125 3543 -45208 30152 21242 -44847 12702 33909 -37416 -4953 39825 -24719 -20235 38886 -9267 -30708 31722 6271 -35403 20132 19400 -33827 6203 28289 -26953 -7588 31813 -16043 -19177 29811 -3258 -26810 22950 9522 -29697 12411 20421 -27403 -304 28037 -20339 -13601 31641 -8867 -26559 31400 7316 -38987 28867 32705 -55028 32539 93456 -133754 213723 -106696 |
Filter Info
| Filter Type | Low Pass? |
| Passband Edge | |
| Passband Ripple | |
| Stopband Edge | |
| Stopband Attenuation |
Coefficient Info
| Number of Taps | 279 |
| Symetrical Filter | 1 |
| Effectifve Taps | 279 |
| Unique Coeff values | 140 |
| Max. Word Length | 24 |
| Gain | 16948255 |
| Fixpoint offset | 2-24 |
| Ones for Binary | 1179 |
| Max. Ones for Binary | 16 (LD 4) |
| Nonzeros for CSD | 869 |
| Max. Nonzeros for CSD | 10 (LD 4) |
| Lower Bound LD | 4 |
| Lower Bound LO | 141 |
References
[1] C. H. Chang and M. Faust, "On `A new common subexpression elimination algorithm for realizing low-complexity higher order digital filters'," \emph{IEEE Trans. Computer-Aided Design of Integrated Circuits and Systems},vol. 29, no. 5, pp. 844–848, May 2010.
